PRODUCT CODE : ASS030550100

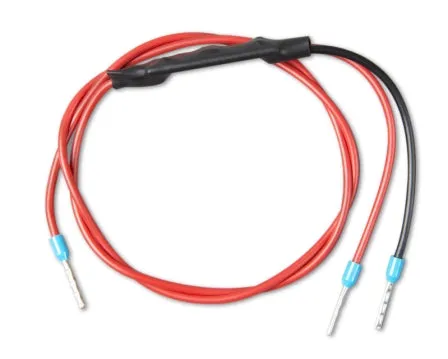

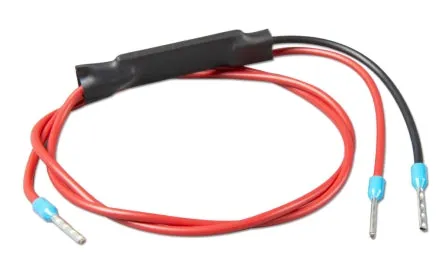

 The inverting remote on-off cable is intended for products which require active pull down on the remote control terminal to switch on, while the source signal turns high when switch on is required.

Use this cable to connect the (discontinued) Phoenix Inverter 12/180, 24/180, 12/350 or 24/350 to a VE. Bus BMS or a Blue Solar MPPT Charger that features a load output:

• VE.Bus BMS: The inverter will be switched off when the batteries are empty.

• BlueSolar MPPT Charger: Connecting an inverter directly to the load output of a BlueSolar MPPT charge is not possible; the inverter needs to be connected to the battery. Then use this cable to switch the inverter on and off with the load output.

Specifications:

Maximum input voltage: 70V

Maximum output voltage: 70V

The minimum input voltage needed for pulldown: approximately 6V

Maximum pull-down current: approximately 30mA (short circuit proof)
